Roller Coaster Gantries
Parametric, low-complexity fabrication linear axis designs using ubiquitous hardware.
Gantry for NEMA23 Motor, 1/4" Aluminum
N23 / 0.25" ALU Hardware
| Type | Size | QTY | Where Used | McMaster PN |
|---|---|---|---|---|
| SHCS | M3 | 2.5mm Hex | 91292A110 | |
| SHCS | M4 | 3mm Hex | 91292A116 | |
| SHCS | M5 | 4mm Hex | 91292A124 |
N23 / 0.25" ALU Tools
| Tool | Where Used | McMaster PN or Link |
|---|---|---|
| M3 Tap | Extensively |

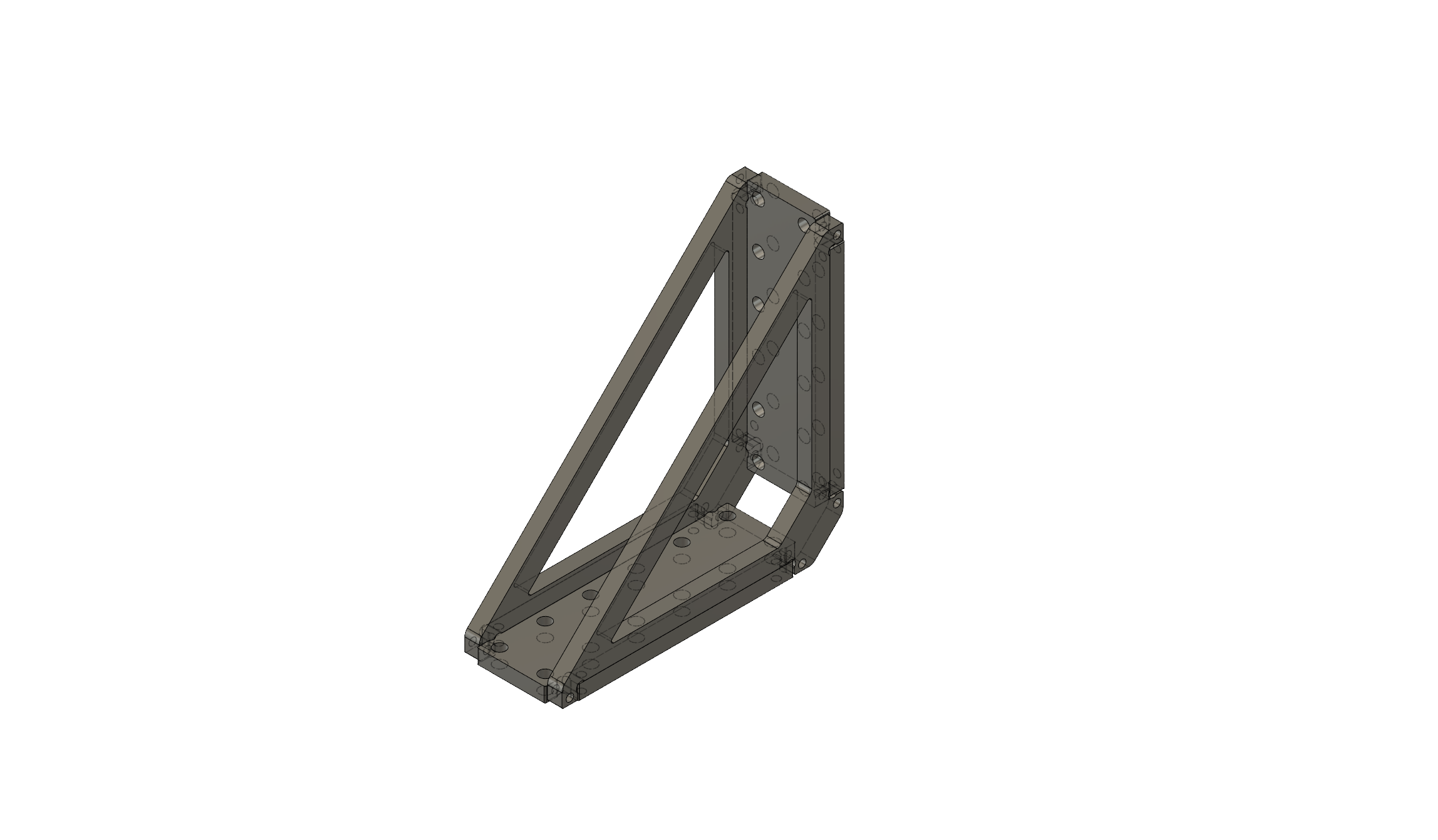

90 Degree Block for 1/4" Aluminum
RCTBLK-90-025ALU Fusion CAD File
REF
Find Open Assemblies Hardware Reference for shorthands etc.
Jake's Notes
-
doc
-
bom
-
hardware callout drawing (probably more useful than video)
-
nice to include a note on what those flexures are up to ... and some other design decisions
-
kinematic mounts are three button head cap screws on 20mm grid w/ reciprocal / wherever-u-like mount ins
-
all axis have scroll-along top plate w/ connection to motor plate, final scroll kinematic triangle
-
all axis have scroll-along bottom beam plate w/ 20mm grid w/ last scroll kinematic triangles
