Answer 15.7

parent 034fe1b5
Branches
No related tags found
No related merge requests found
......@@ -222,12 +222,20 @@ the convolutional encoder in Figure 15.20, what data were transmitted?
{:.question}
This problem is harder than the others.
My code for all sections of this problem is
[here](https://gitlab.cba.mit.edu/erik/compressed_sensing). I wrote it in C++ using
[Eigen](http://eigen.tuxfamily.org) for vector and matrix operations.
### (a)
{:.question}
Generate and plot a periodically sampled time series {$$t_j$$} of N points for the sum of two sine
waves at 697 and 1209 Hz, which is the DTMF tone for the number 1 key.
Here's a plot of 250 samples taken over one tenth of a second.
![samples](../assets/img/pset12_fig_a.png)
### (b)
{:.question}
......@@ -244,18 +252,28 @@ D_{ij} =
\end{align*}
$$

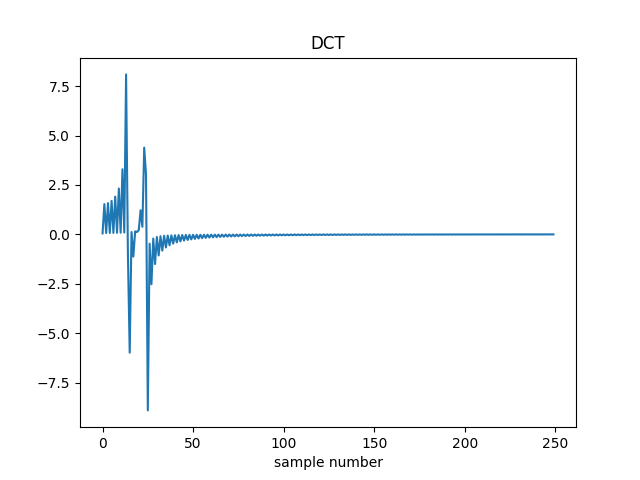

![samples](../assets/img/pset12_fig_b.png)
### (c)
{:.question}
Plot the inverse transform of the {$$f_i$$} by multiplying them by the inverse of the DCT matrix
(which is equal to its transpose) and verify that it matches the time series.
The original samples are recovered.
![samples](../assets/img/pset12_fig_c.png)
### (d)
{:.question}
Randomly sample and plot a subset of M points {$$t^\prime_k$$} of the {$$t_j$$}; you’ll later
investigate the dependence on the sample size.
Here I've selected 100 samples from the original 250. The plot is recognizable but very distorted.
![samples](../assets/img/pset12_fig_d.png)
### (e)
{:.question}
......@@ -270,6 +288,19 @@ $$
{:.question}
and plot the resulting estimated coefficients.

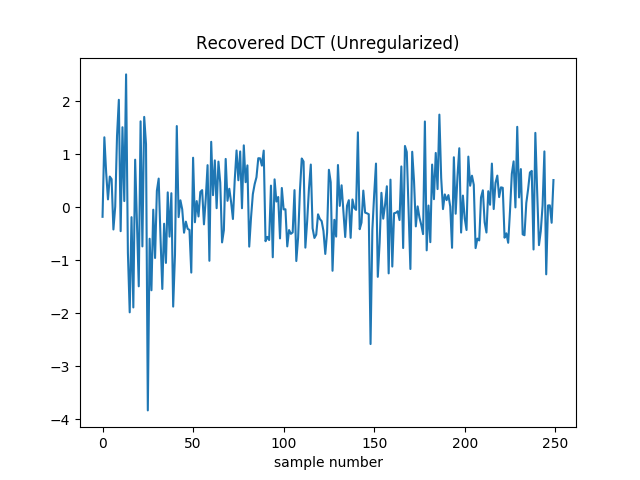

Gradient descent very quickly drives the loss function to zero. However it's not reconstructing the
true DCT coefficients.
![samples](../assets/img/pset12_fig_e.png)
To make sure I don't have a bug in my code, I plotted the samples we get by performing the inverse
DCT on the estimated coefficients.
![samples](../assets/img/pset12_fig_e_2.png)
Sure enough all samples in the subset are matched exactly. But the others are way off the mark.
We've added a lot of high frequency content, and are obviously overfitting.
### (f)
{:.question}
......@@ -287,6 +318,20 @@ $$
{:.question}
and plot the resulting estimated coefficients.
With L2 regularization, we remove some of the high frequency content. This makes the real peaks a
little more prominent.
![samples](../assets/img/pset12_fig_f.png)
However it comes at a cost: gradient descent no longer drive the loss to zero. As such the loss
itself isn't a good termination condition. In its place I terminate when the squared norm of the
gradient is less than $$\num{1e-6}$$. The final loss for the coefficients in the plot above is
around 50.
You can easily see that the loss is nonzero from the reconstructed samples.
![samples](../assets/img/pset12_fig_f_2.png)
### (g)
{:.question}
......@@ -301,3 +346,33 @@ $$
{:.question}
Plot the resulting estimated coefficients, compare to the L2 norm estimate, and compare the
dependence of the results on M to the Nyquist sampling limit of twice the highest frequency.

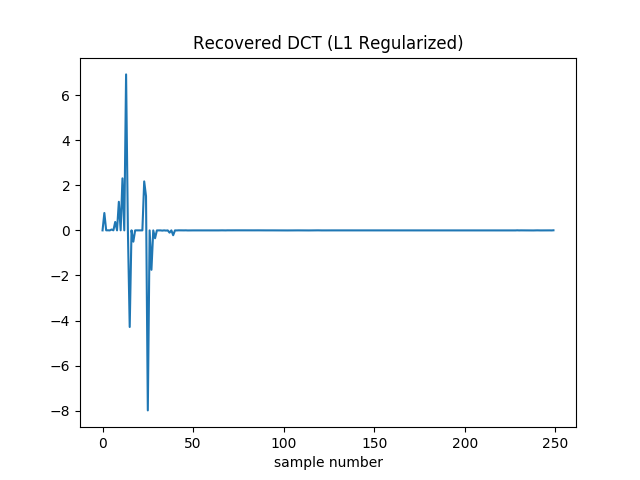

With L1 regularization the DCT coefficients are recovered pretty well. There is no added high
frequency noise.
![samples](../assets/img/pset12_fig_g.png)
It still can't drive the loss to zero. Additionally it's hard to drive the squared norm of the
gradient to zero, since the gradient of the absolute values shows up as 1 or -1. (Though to help
prevent oscillation I actually drop this contribution if the absolute value of the coefficient in
question is less than $$\num{1e-3}$$.) So here I terminate when the relative change in the loss
falls below $$\num{1e-9}$$.
The final loss is around 40; smaller than we were able to find with L2 regularization. However it
did take more effort: this version converged after 21,060 iterations, as opposed to 44 (for L2) or
42 (for unregularized).
The recovered samples are also much more recognizable. The amplitude of our waveform seems overall
a bit diminished, but unlike our previous attempts it looks similar to the original.
![samples](../assets/img/pset12_fig_g_2.png)
This technique can recover the signal substantially below the Nyquist limit. The highest frequency
signal is 1209 Hz, so with traditional techniques we'd have to sample at 2418 Hz or faster to avoid
artifacts. Since I'm only plotting over one hundreth of a second, I thus need at least 242 samples.
So my original 250 is (not coicidentally) near here. But even with a subset of only 50 samples, the
L1 regularized gradient descent does an admirable job at recovering the DCT coefficients and
samples:
![samples](../assets/img/pset12_fig_g_3.png)
![samples](../assets/img/pset12_fig_g_4.png)
