DDMC Router Daughter

This is a repository for a Daughter Board circuit from the from the DDMC project.

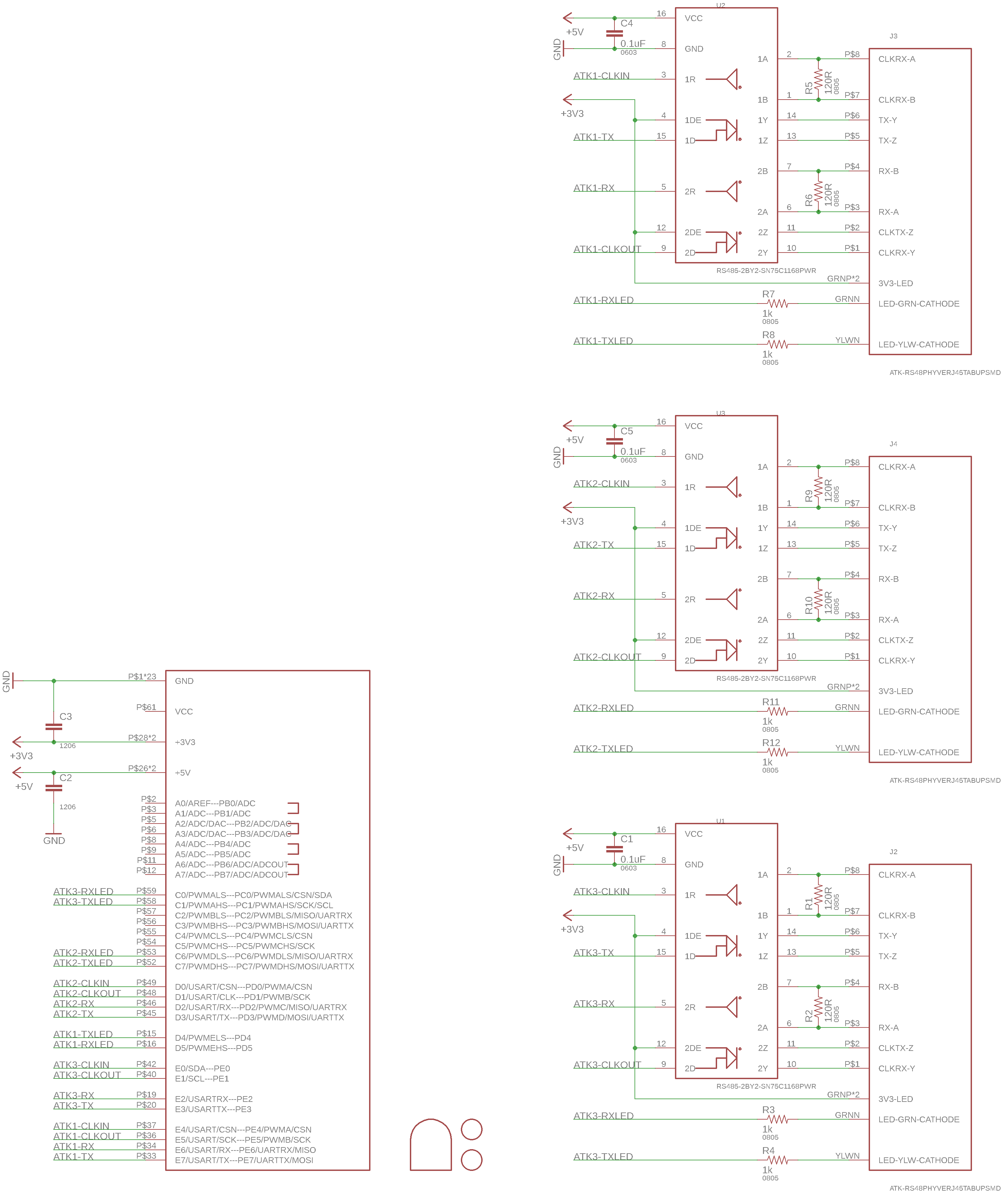

board schem

parts

Reference Designator Package Type Value Digikey Part Number Function Cost
C1, C4, C5 0603C Capacitor 0.1uF - Bypass -
C2, C3 1206C Capacitor 10uF - Bypass -
R3, R4, R7, R8, R11, R12 0805R Resistor 1K - LED Current Limiting -
R1, R2, R5, R6, R9, R10 0805R Resistor 120R - RS485 Termination -
U1, U2, U3 16-TSSOP Line Driver SN65C1168 296-14348-6-ND 2/2 RS-485 Driver 1.73
J1 FX8 60 Pin Mezzanine Connector Hirose FX8-60P-SV1(91) H10691-ND Mounting to Motherboard 2.48
J2, J3 - M3 Screw Terminal Wurth 9774040360R 732-5271-1-ND Mounting -
J4, J5, J6 - - Wurth 634008137521 732-3164-1-ND RJ45 Network Port 3.32
