D51 Module, Round Two

For mixed volume production of various network endpoints / routers, this board is the collected set of boilerplate utilities need to boot and use the ATSAMD51:

  • JTAG Programming Header (SWD Pins)
  • Reset Switch
  • 5v in -> local 3v3 reg
  • Bypass Caps
  • 32kHz Xtal
  • 16MHz Xtal
  • LEDS: Power, Clock, Error
  • USB Connector
  • RS485 PHY w/ DE, RE, and Logic-Selectable Termination Resistor
  • DIP Switch for local configuration, i.e. bus-drop-address
  • SAMD51

Most of the other D51 pins are broken out on 0.05" spaced castellated pins. The module is about as tiny as I could flex it, 20.3 x 28.6mm. The notion is to make lots of these, and solder them on to more ad-hoc driver boards.

V02

I updated this module to break out the 5th SERCOM, so I could ostensibly use all of them in a circuit. I also routed the debug lights that I had forgotten about (whoops) and swapped from a surface mount programming header to a thru-hole, not soldered on by default, but a 'lock' header pattern, hopefully it will just touch-and-program pretty well.

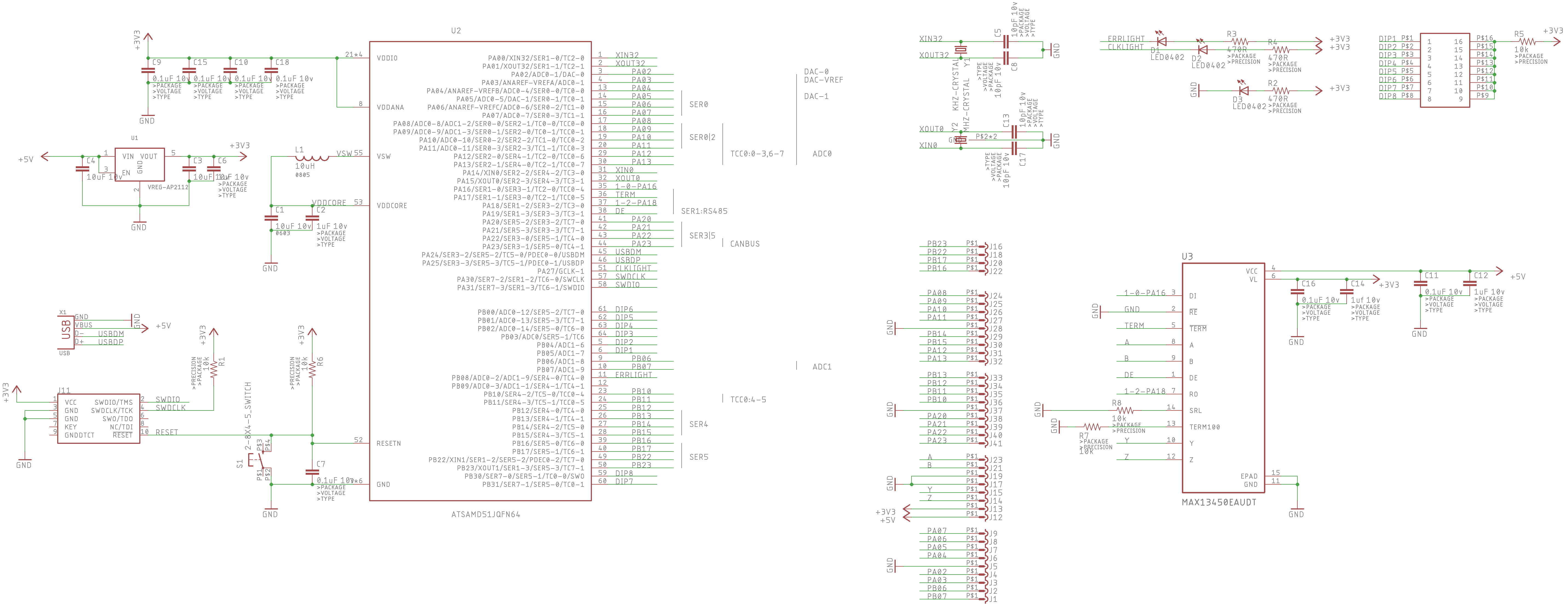

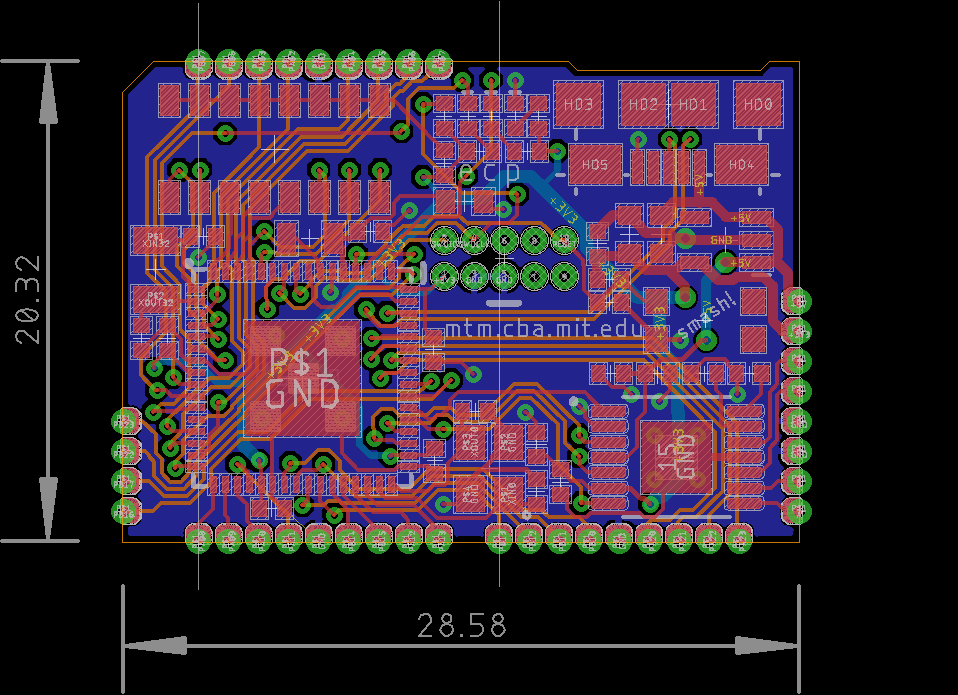

routed schematic

70 of these are on the way.

V01

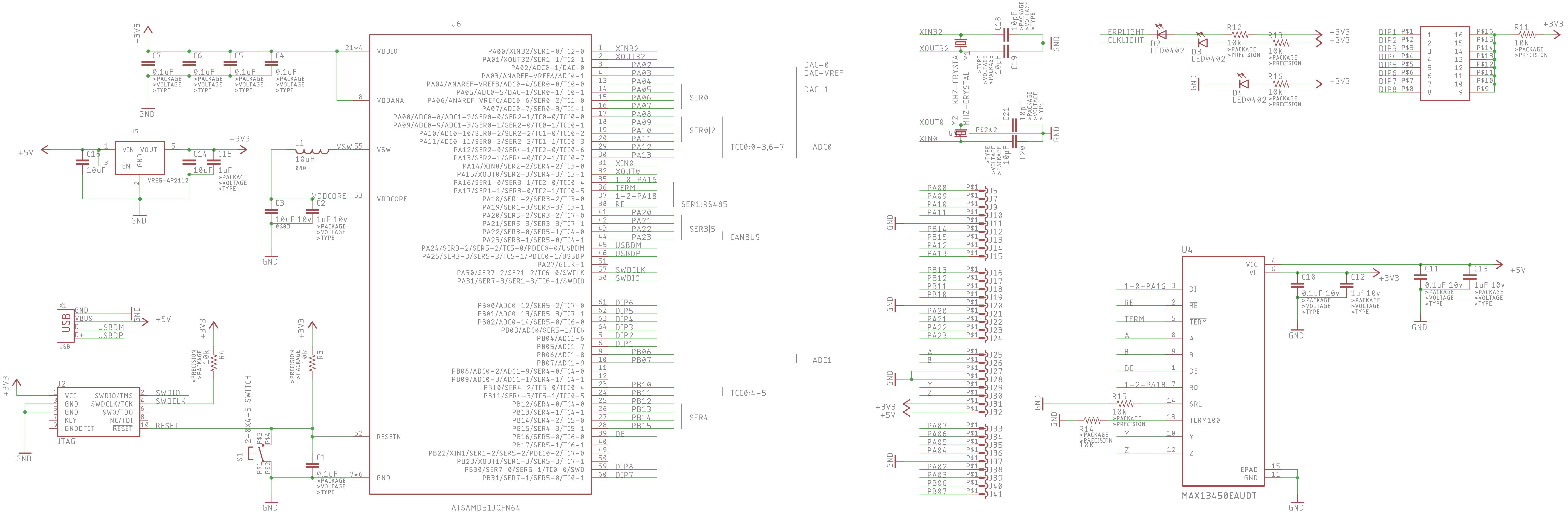

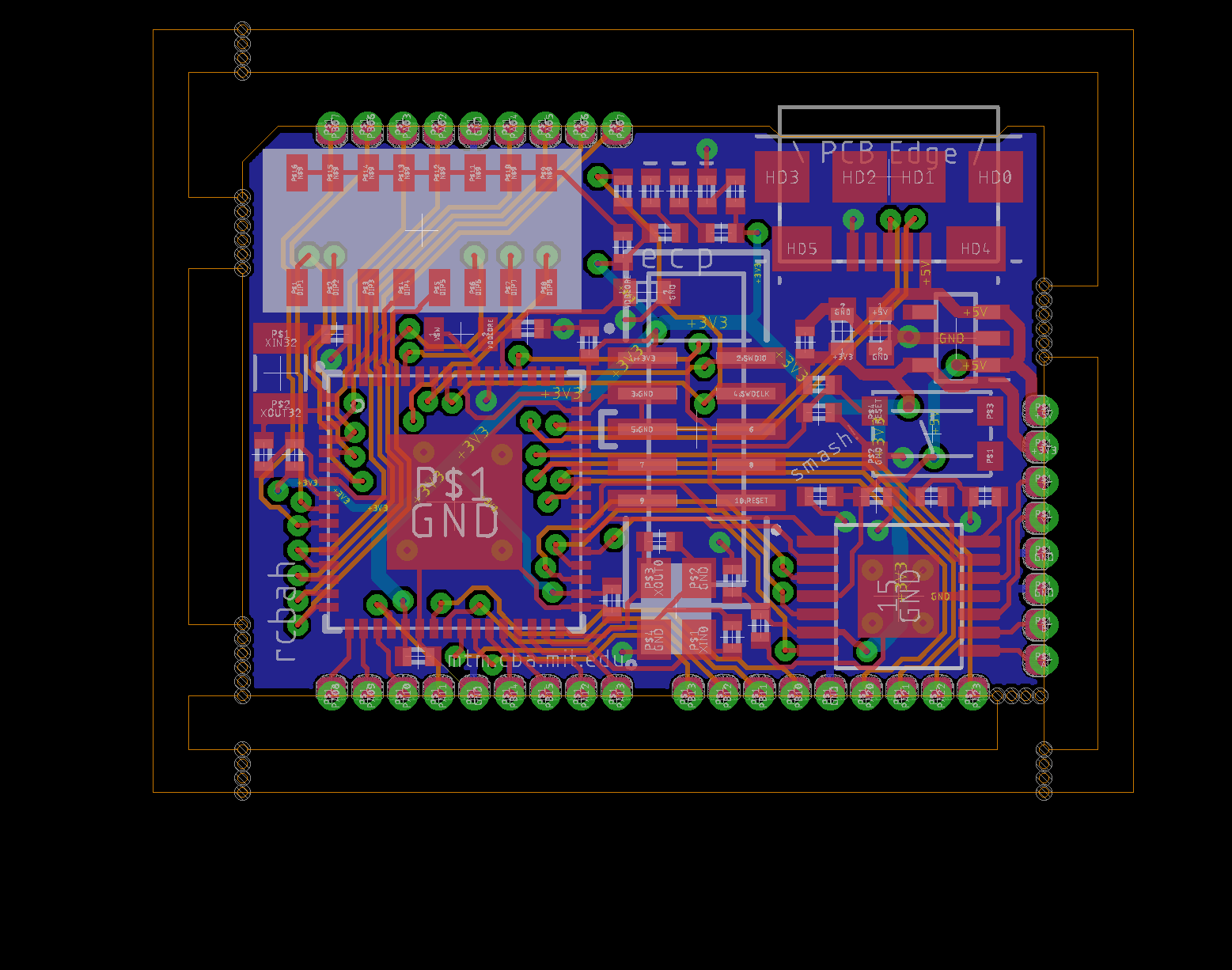

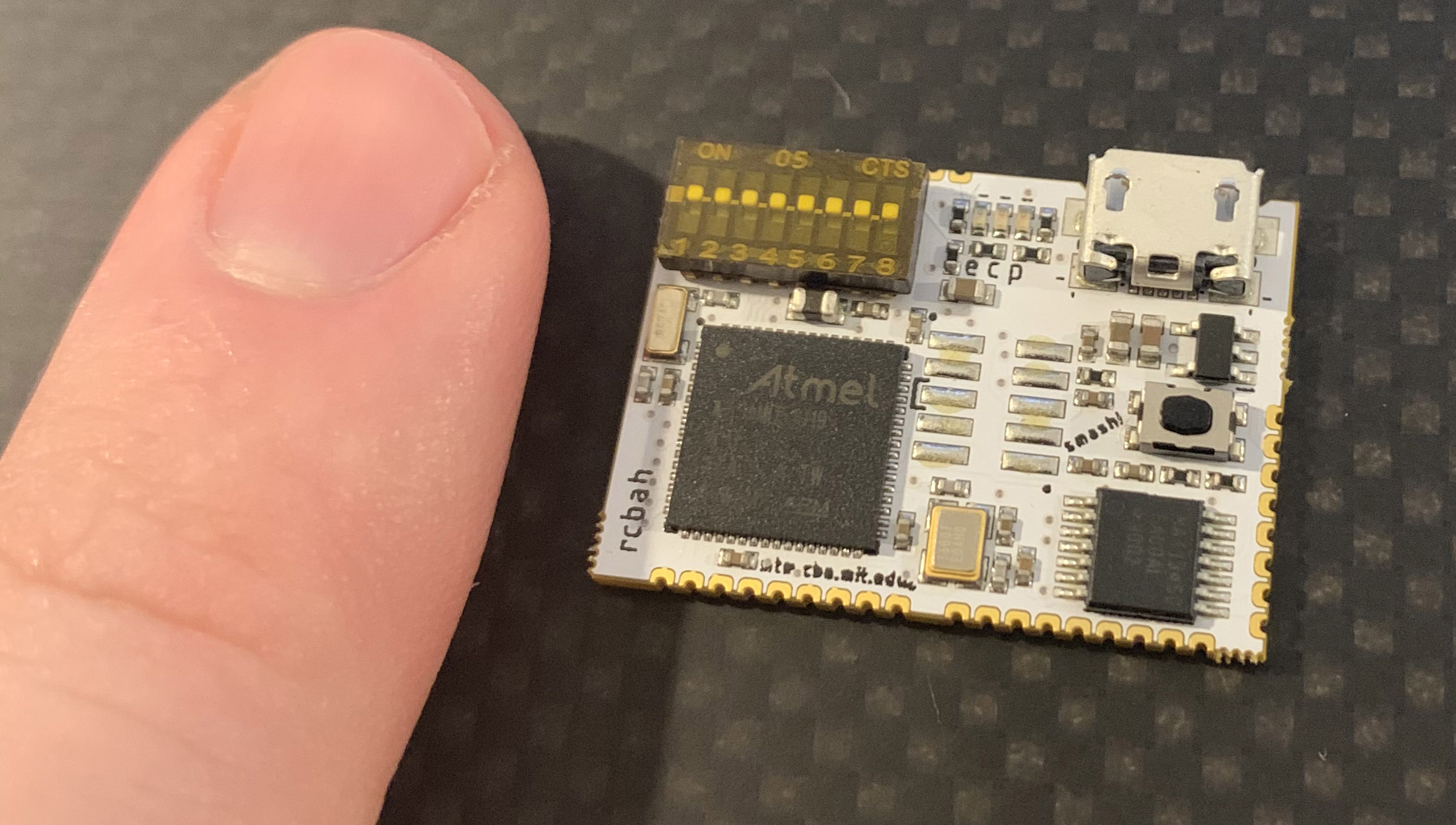

fab routed schem

Part Numbers

Part Identifier Digikey PN
RS485 Driver --- MAX13450EAUD+-ND
Screw Terminal --- 277-1860-ND
DIP Switch --- CT3111-ND
XTAL 32KHz --- XC1617CT-ND
XTAL 16MHz --- SER4046CT-ND
0402 LED Red D2 516-3060-1-ND
0402 LED Green D3, D4 516-3066-1-ND
JTAG Program Header J2 was err specd as 1175-1629-ND 609-3695-1-ND
Reset Switch --- CKN10685CT-ND
D51 --- ATSAMD51J19A-MUTCT-ND
3v3 600mA VREG --- AP2112K-3.3TRG1DIDKR-ND
USB Micro Plug --- 609-4613-1-ND
