    Roller Coaster Gantries

    These are machine design elements that we use at the CBA when we're spinning up custom machines: they're parametric, aim to be reconfigurable, and we can make them in the lab with a minimum set of stock hardware.

    Machines Using RCT Gantries

    Mother Mother, a generalist
    Claystack, a ceramics 3d printer
    the Madison Park Vocational Machine, for high schools

    Usage

    This repository should help you figure out how to build your own axis: it contains some explanatory drawings, videos, as well as CAD files and Bills of Materials for various design elements.

    A typical machine-level workflow is described for machineweek, at this link.

    First, find the model you'd like to start with on this page and download it, or clone the whole repo. The .f3d files are parametric Fusion 360 files. Files here are tuned for material thickness choices - but the exact thickness of your material can be tuned in the model: i.e. the 0.375" HDPE model will also work for ~ 8 - 11mm HDPE if you're working with sensible units in another country.

    In Fusion, you can open this file up and use (from the top menu)

    Modify >> Change Paremeters

    Each of these models should have some parameters starred, these are what you'll want to configure. Go ahead and set axis lengths and material thicknesses according to what you're doing.

    There are also two sets of hole patterns in the last two 'groups' of features on the feature history bar. One puts a 20mm square grid on top of the axis, the other on the bottom. You can leave these in, or customize them, or add whatever mounting-to-the-next-bit design you'd like.

    When you're satisfied, you can export the model as a .step file, using the file menu, to prep it for fabrication.

    File >> Export

    Make sure to change 'type' to .step, and check the 'save to my computer' box. Now you're ready to import it into another assembly.

    Alternately, you can save the changes to a new file and import that model into another Fusion 360 Assembly.

    Gantry for NEMA17 Motor, 0.25" ALU

    RCTN23-0375HDPE

    -42.3 mm - ( 6.5 * 2 ) * 1 mm

    https://www.vxb.com/20-625ZZ-5x16x5-Metal-5mm-Bore-Miniature-p/kit250.htm

    Flat Heads

    • 20mm for reach-thru on motor runner

    • ? there are more ?

    • holes in plate

    • wj plate

    • wire organizer test, plate feet

    • 3dpnext

    • wj

    • do we have belts, do we have pulleys, order bearings, last mcmaster, admirals, etc, close it out and next up we do software problems

    Notes from the First Build

    Increased preload from 0.2 to 0.4mm A few fitting things ... motor mounts get lots more clearance Increased sizes for heat-set inserts to make overflow smaller.

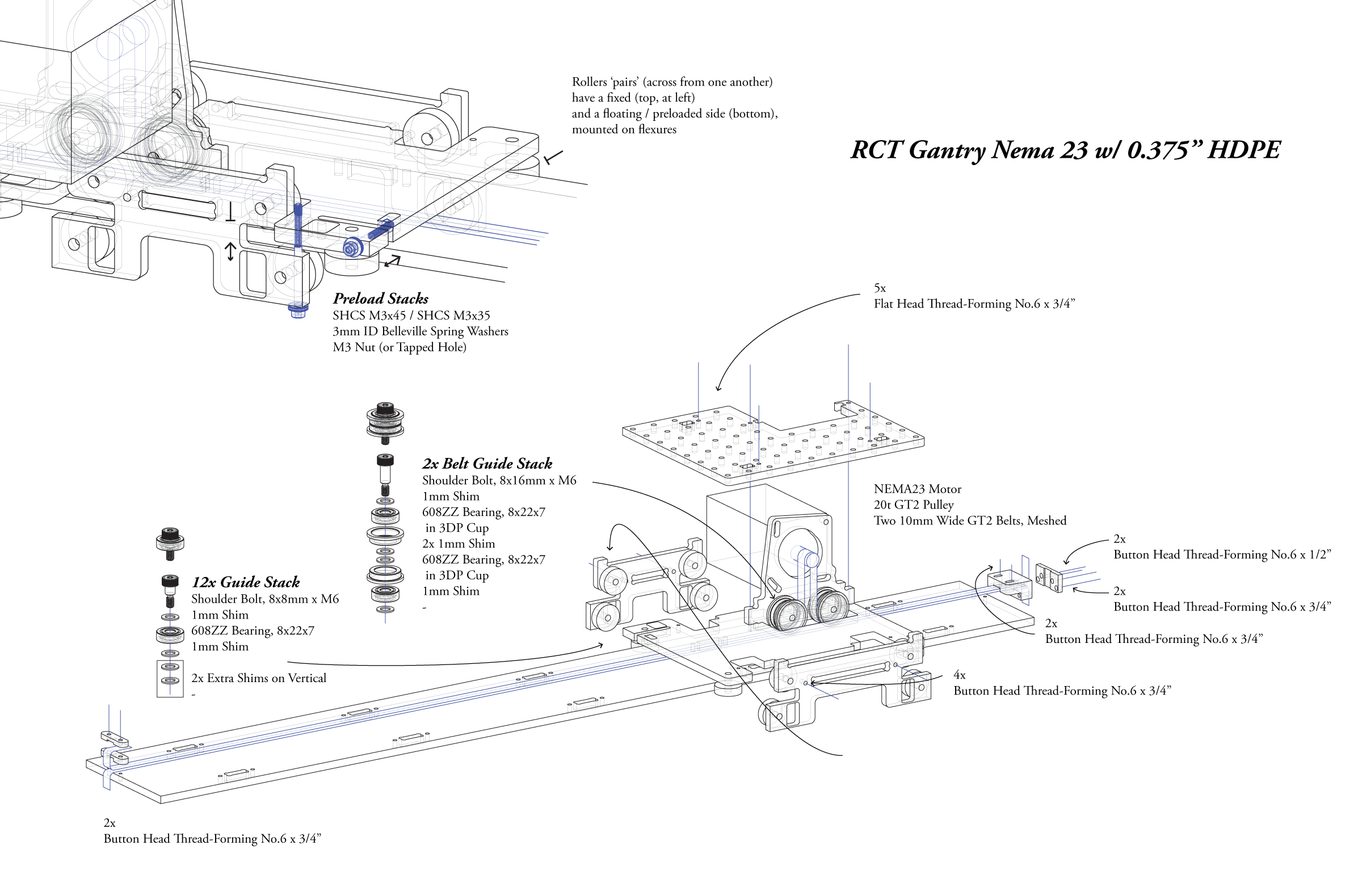

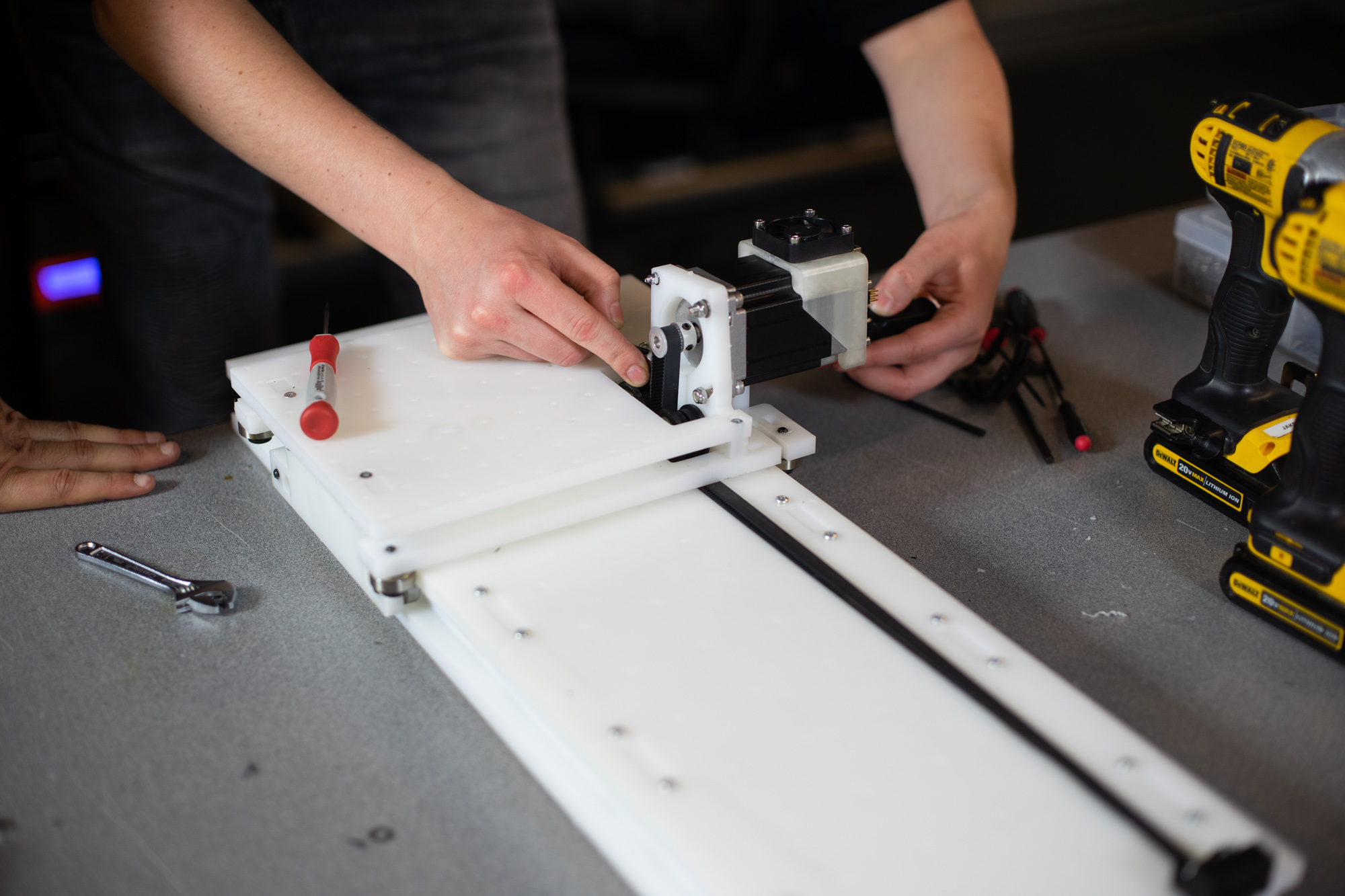

    Gantry for NEMA23 Motor, 0.375" HDPE

    RCTN23-0375HDPE

    RCTN23-0375HDPE

    RCTN23-0375HDPE Fusion CAD File

    pulleys-that-are-the-wrong-size-hotfix

    BOM N23 0375HDPE

    Type Size QTY Where Used McMaster PN
    Button Head Thread-Forming No. 6, 3/4" 10 + (4 * rail tab) (lots) Connecting Lap and Tab HDPE, Belt Blocks, Chassis 99512A265
    Button Head Thread-Forming No. 6, 1/2" 2 Belt Blocks 99512A259
    Flat Head Thread-Forming No. 6, 3/4" 8 Flush Mounting HDPE 95893A258
    SHCS M3x40 2 Used only when pre-loading bearing rollers 91292A024
    SHCS M3x30 2 Used only when pre-loading bearing rollers 91292A022
    Belleville Washer 3.1mm ID 24 Used only when pre-loading bearing rollers 96445K157
    Locknut M3, Nylon 6 Used only when pre-loading bearing rollers 90576A102
    Locknut M5, Nylon 4 Connecting Nema 23 Motor 93625A200
    SHCS M5x10 1 Connecting Nema 23 Motor 91292A124
    SHCS M5x16 3 Nema 23 Motor through tensioning arcs 91292A126
    Shoulder Screw 8mm Shoulder x 8mm x M6 10 Guide Roller Shaft 92981A198
    Shoulder Screw 8mm Shoulder x 16mm x M6 2 Belt Guide Roller Shaft 92981A202
    Bearing Shim 8mm ID x 10mm OD x 1mm Thick 38 Roller Separation 98089A381
    Less Expensive Bearing Shim 5/16" Screw Oversize Washer 38 Roller Separation 91090A110

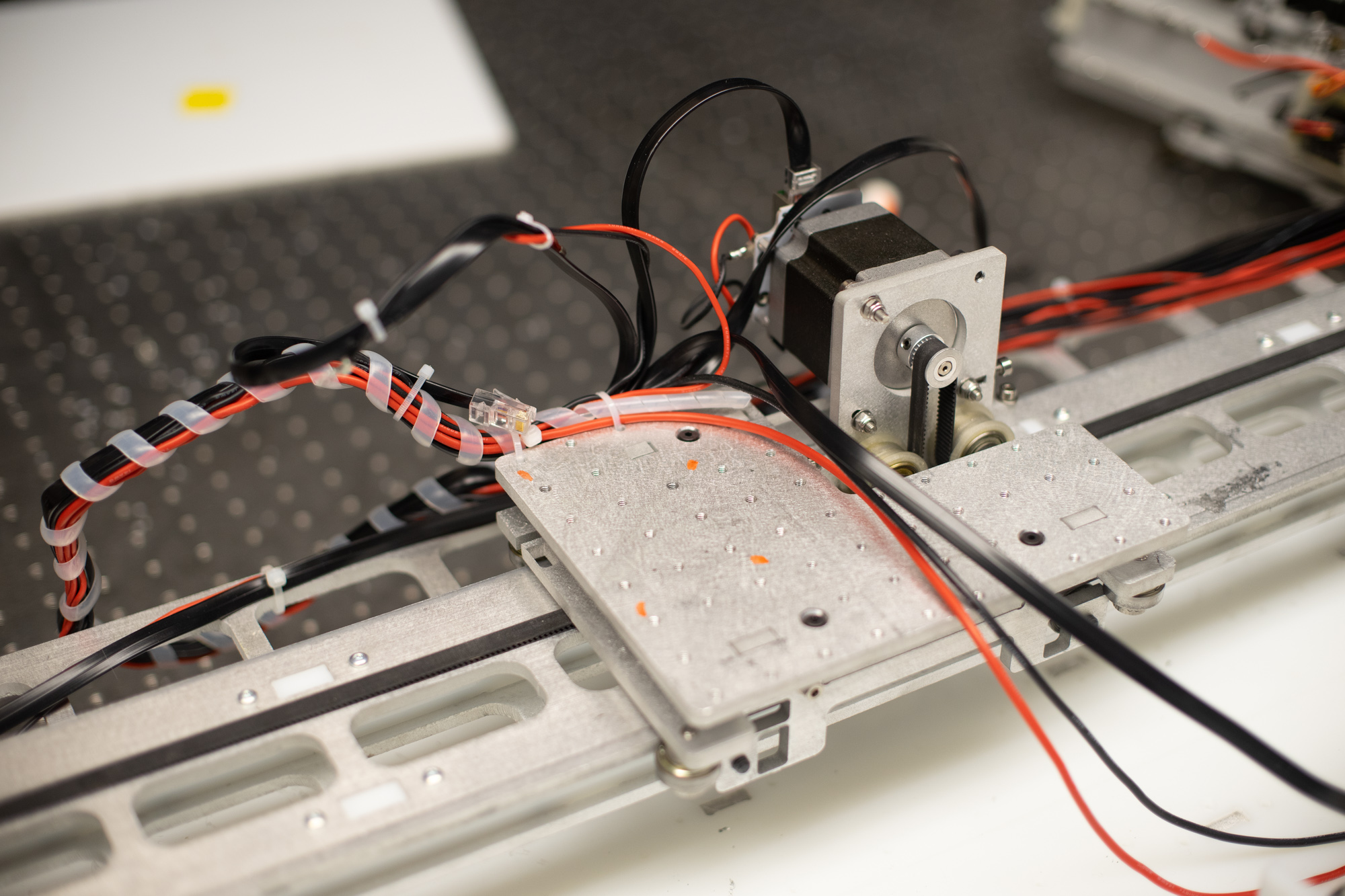

    Gantry for NEMA23 Motor, 0.25" Aluminum

    RCTN23-025ALU

    RCTN23-025ALU

    RCTN23-025ALU Fusion CAD File

    BOM N23 025ALU

    Type Size QTY Where Used McMaster PN
    SHCS M3x12 8 Connecting Lap and Tab Aluminum, and Belt Blocks
    FHCS M3x12 8 Nice option for flush-mounting things
    SHCS M3x35 2 Used only when pre-loading bearing rollers 91292A033
    SHCS M3x45 2 Used only when pre-loading bearing rollers 91292A025
    Belleville Washer 3.1mm ID 12 Used only when pre-loading bearing rollers 96445K157
    Locknut M3, Nylon 2 Used only when pre-loading bearing rollers 90576A102
    Locknut M5, Nylon 4 Connecting Nema 23 Motor 93625A200
    SHCS M5x10 1 Connecting Nema 23 Motor
    SHCS M5x16 3 Nema 23 Motor through arcs
    Shoulder Screw 8mm Shoulder x 8mm x M6 10 Guide Roller Shaft 92981A198
    Shoulder Screw 8mm Shoulder x 16mm x M6 2 Belt Guide Roller Shaft 92981A202

    N23 / 0.25" ALU Parts

    What Spec QTY Where Used Link
    608ZZ Bearings 8x22x7 14 Rollers VXB 10, VXB 1000
    GT2 Belt 10mm Wide, Length Dependent 2 Belt! Amazon
    GT2 Pulley 10mm Wide, Motor Bore Diameter 1 Transmission! Above, Combo

    Of course, you'll also need material. In this case, just 0.25" aluminum. I use 6061.

    N23 / 0.25" ALU Tools

    A list of the (perhaps) specialty tools you'll want to have to make this gantry:

    Tool Where Used McMaster PN or Link
    M3 Tap Extensively
    M5 Tap Extensively
    M6 Tap Shoulder Bolts
    Countersink Bit Flush Mounting

    90 Degree Block for 1/4" Aluminum

    RCTBLK-90-025ALU

    RCTBLK-90-025ALU Fusion CAD File

    Shared Purchase Parts

    What Spec QTY Where Used Link
    608ZZ Bearings 8x22x7 14 Rollers VXB 10, VXB 1000
    GT2 Belt 10mm Wide, Length Dependent 2 Belt! Amazon
    GT2 Pulley 10mm Wide, Motor Bore Diameter 1 Transmission! Above, Combo
    Stepper Motor NEMA23 x52mm 1 Torque ! StepperOnline
    Stepper Motor NEMA23 x76mm -or Torque ! StepperOnline

    REF

    Find Open Assemblies Hardware Reference for shorthands etc.

    Jake's Notes

    • gantries still want fully described end conditions / mounts
    • belt tensioning / assembly video
    • working examples on video
