    Little Rascal

    LR implements these parametric linear axis

    See this important link.

    This is a machine for airships, as in, airliners, as in, it is the small kit I will travel with. Fits inside of a Pelican 1650 having interior dimensions of 670x400x200mm

    It has:

    • one big bed
    • one axis ~ 500mm travel
    • two axis ~ 250mm travel
    • one axis ~ 60mm travel


    Aspirationally this configuration can change, to become a larger 'dropping bed' type machine, for clay printing, or 3D printing.

    Also, working on modular end effectors, and a notion of modular beds as well (i.e. a small vacuum chuck, a small vise, a small heated bed, etc)

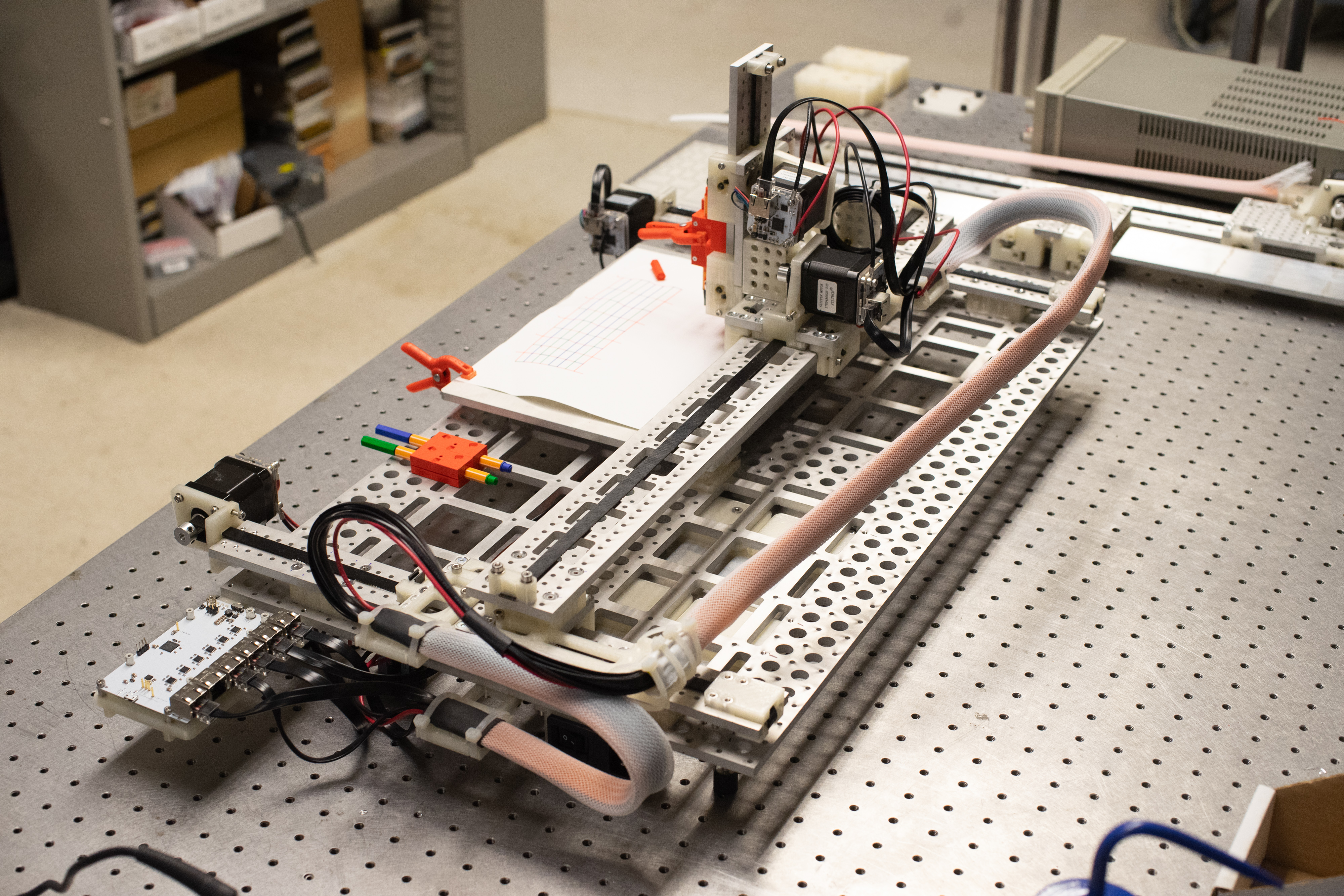

    img img

    The May Update

    littleRascal is pending an update, I want to

    • make motion control work with squidworks first
    • show automatic end effector swapping, or rotary-axis-turning, before:

    Here's a list of things not-to-forget, for me

    • beam out the beam, ferchrissake
    • the bupdate (beam update) should go for a face-mounted beam a-la onsrud, etc,
    • to avoid the motor-on-face awkwardness, use the pulley mod. then can mount z back-to-face ... it would be awesome to have #globaltramming
    • then the rest of the beam is 1/8th inch alu with nut inserts, flushmount fhcs, definitely biscuits, maybe biscuits are triangular / accordioned ?
    • lightening holes tripel-eh
